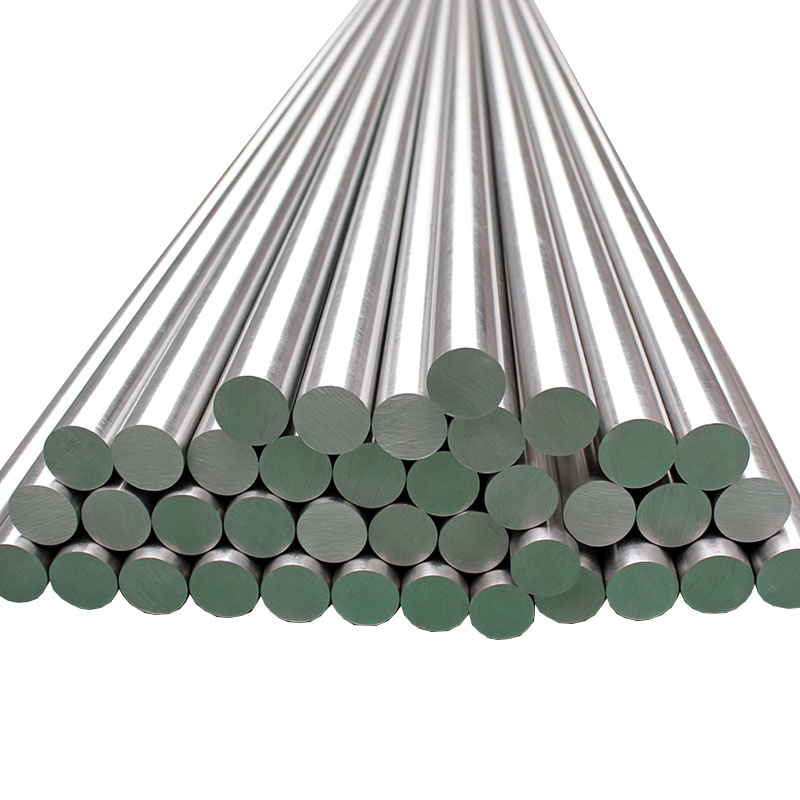

201 stainless steel is a type of chromium-nickel-manganese austenitic stainless steel, which is widely used as a cost-effective alternative to 304 stainless steel in less corrosive environments. With moderate corrosion resistance, good formability and weldability, and a low nickel content, you can find equivalents in various steel standards. Such as X12CrMnNiN17-7-5/1.4372 from the European standard EN 10088-3, 12Cr17Mn6Ni5N/1Cr17Mn6Ni5N from the Chinese standard GB/T 1220, SUS201 from the Japanese standard JIS G4303, and 12Kh15G9ND from the Russian standard GOST 5632-72, etc.
1: Steel equivalent
Country | USA | EN | China | Japan | Russia |
Standard | ASTM A276/276M | EN10088-3 | GB/T1220 | JIS G4303 | GOST 5632-76 |
Grade | 201 | X12CrMnNiN17-7-5/1.4372 | 12Cr17Mn6Ni5N | SUS201 | 12Kh15G9ND |
2: Chemical composition
Grade | C | Si | Mn | P | S | Cr | Ni | N |
201 | 0.15Max | 1.0Max | 5.50-7.50 | 0.060Max | 0.030Max | 16-18 | 3.50-5.50 | 0.25Max |
X12CrMnNiN17-7-5/1.4372 | 0.15Max | 1.0Max | 5.50-7.50 | 0.045Max | 0.015Max | 16-18 | 3.50-5.50 | 0.05-0.25 |
12Cr17Mn6Ni5N | 0.15Max | 1.0Max | 5.50-7.50 | 0.050Max | 0.030Max | 16-18 | 3.50-5.50 | 0.05-0.25 |
SUS201 | 0.15Max | 1.0Max | 5.50-7.50 | 0.060Max | 0.030Max | 16-18 | 3.50-5.50 | 0.25Max |
12Kh15G9ND | 0.15Max | 1.0Max | 8.00-10.0 | 0.060Max | 0.025Max | 14-16 | 0.50-1.50 | 0.05-0.20 |
3: Mechanical properties
Mechanical properties for 12Cr17Mn6Ni5N/1Cr17Mn6Ni5N from standard GB/T1220 and SUS201 from JIS G4303.
Grade | Tensile strength | Yield strength | Alongation | Area of reduction | Hardness |
1Cr17Mn6Ni5N | 520Mpa Min | 275Mpa Min | 40% Min | 45% Min | HBW241Max |
SUS201 | 520Mpa Min | 275Mpa Min | 40% Min | 45% Min | HBW241Max |
Mechanical properties for X12CrMnNiN17-7-5/1.4372 from standard EN10088-3-2014.
Steel grade | Size range | Tensile strength | Yield strength | Alongation | Impact value at RT/J | Hardness /HBW | ||
L | Tr | L | Tr | |||||
X12CrMnNiN17-7-5/1.4372 | d≤160 | 680-880Mpa | 230Mpa Min | 40% Min | / | 100J Min | / | 260Max |
160＜d≤250 | 680-880Mpa | 230Mpa Min | / | 35% Min | / | 60J Min | 260Max | |
Minimum values for the 0.2% and 1% proof strength of austenitic steels at elevated temperatures according to standard EN10088-3-2014
Steel garde | HT condition | Minimum 0.2% proof strength at a temperature of: | |||||||||
100℃ | 150℃ | 200℃ | 250℃ | 300℃ | 350℃ | 400℃ | 450℃ | 500℃ | 550℃ | ||
X12CrMnNiN17-7-5/1.4372 | +AT | Mpa or N/mm2 | |||||||||
295 | 260 | 230 | 220 | 205 | 185 | / | / | / | / | ||
Minimum 1% proof strength at a temperature of: | |||||||||||
100℃ | 150℃ | 200℃ | 250℃ | 300℃ | 350℃ | 400℃ | 450℃ | 500℃ | 550℃ | ||
Mpa or N/mm2 | |||||||||||
325 | 295 | 265 | 250 | 230 | 205 | / | / | / | / | ||
AT = Solution annealed
4: Supply size & Tolerance & Stock size
Product type | Size range | Length |

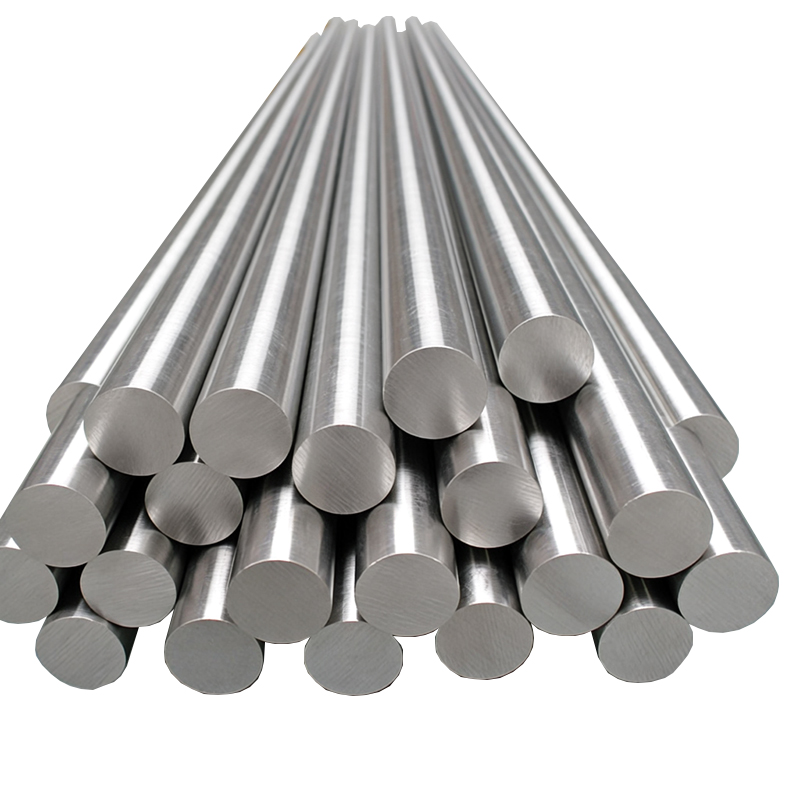

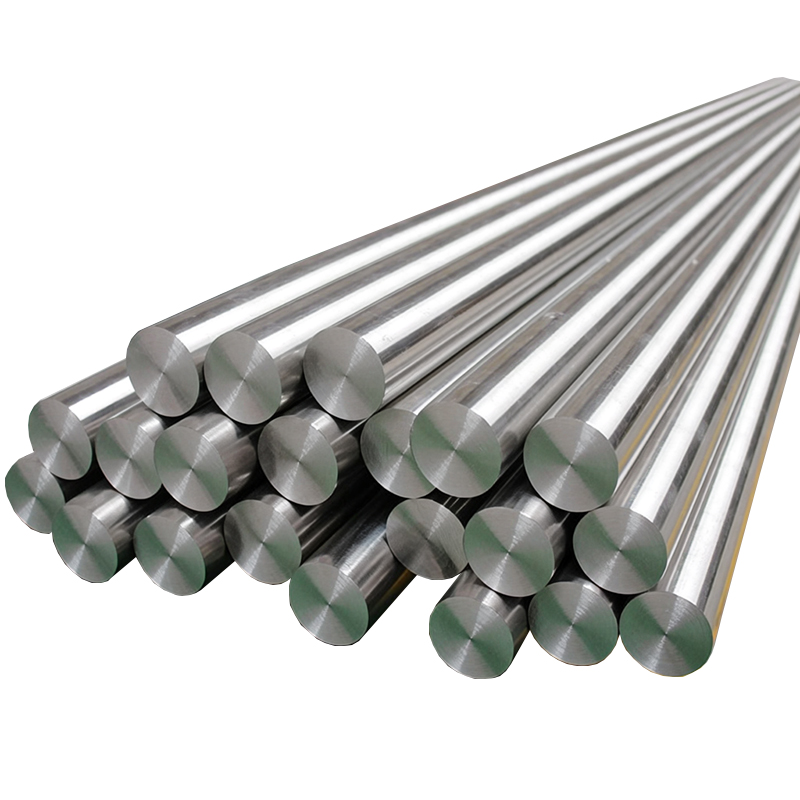

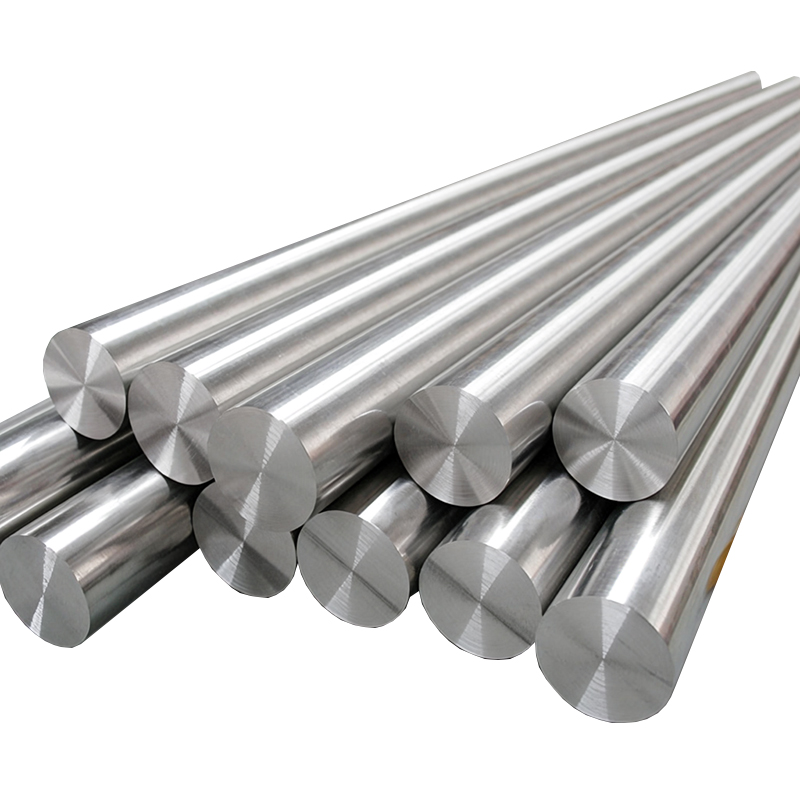

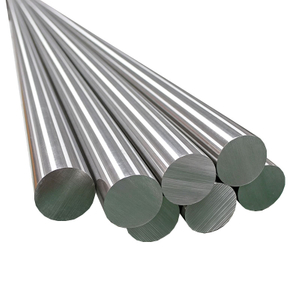

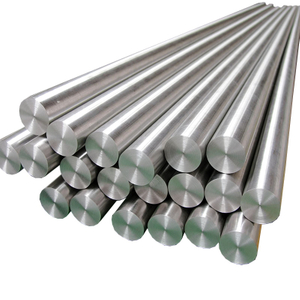

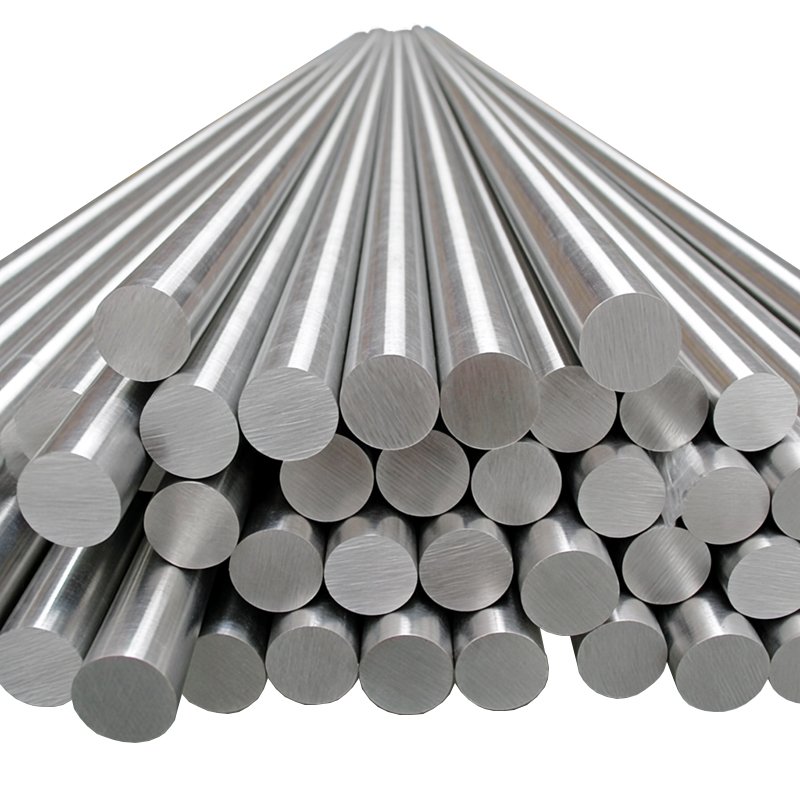

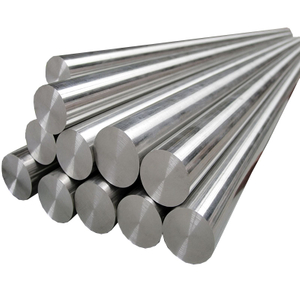

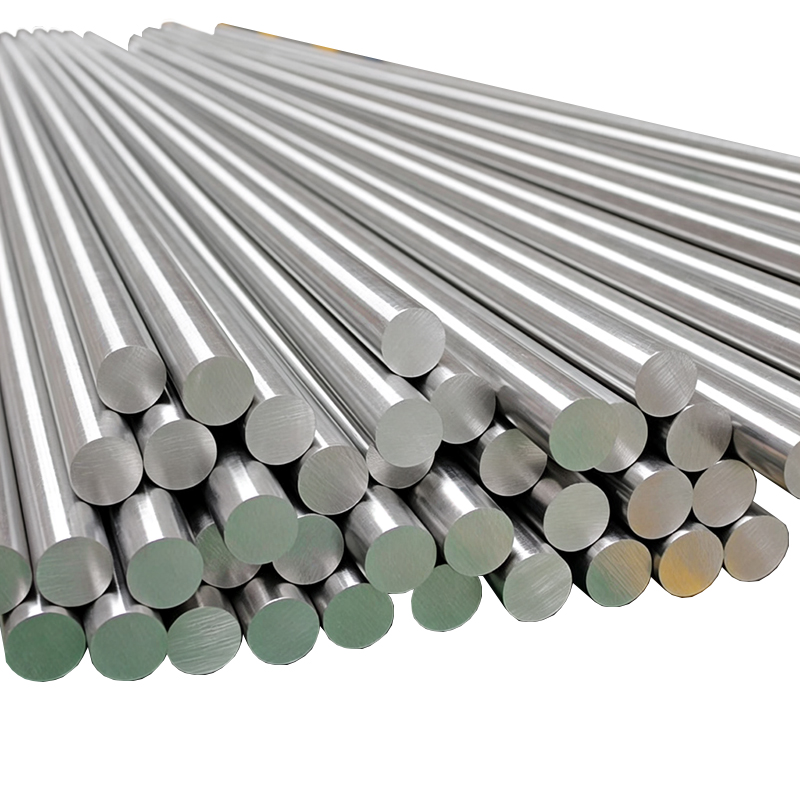

Hot rolled bar | Φ10-Φ130mm | 5000-7000mm |
Hot forged bar | Φ140-Φ600mm | 2000-5800mm |
Hot rolled plate/sheet | T:2-60mm; W:310-810mm | 6000-12000mm |
Hot forged plate | T:70-250mm; W:310-810mm | 2000-5800mm |
Hot Forged block | T: 260-500mm; W: 300-1000mm | 2000-5800mm |
Surface Finish | Turned | Milled | Grinding(Best) | Polished(Best) | Peeled(Best) | Black Forged | Black Rolled |
Tolerance | +0/+3mm | +0/+3mm | +0/+0.05mm | +0/+0.05mm | +0/+0.1mm | +0/+5mm | +0/+1mm |
Straighness | 1mm/1000mm max. | 3mm/1000mm max. | |||||
Qilu steel stock hot rolled bar and forged bars more than ten thousands tons every month, below our our stock size.
1): Stock diameter for hot rolled bar
10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 35 | 38 | 40 | 45 | 50 |
55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 120 | 130 | 140 |
150 | 160 | 170 | 180 | 190 |
2) : Stock diameter for hot forged bar
200 | 210 | 220 | 230 | 240 | 250 | 260 | 270 | 280 | 290 |
300 | 310 | 320 | 330 | 340 | 350 | 360 | 370 | 380 | 390 |
400 |
3): We also have stocks for cold drawn sheet (from 0.2-3mm) and hot rolled plate (from 4mm to 60mm)
Since the stocks change everyday, if you want to know our stock available information, please contact our salesman.
5: Ultrasonic Test
EN10228-3 class III or Sep 1921-84 D/D
6：Steel making & Forging processing
1): Steel making process:
EF+LF+VD
EAF+LF+VD
EF+LF+VD+ESR
EAF+LF+VD+ESR
2): Forging processing:
Hot forging temperature: 850-1150℃. Slow and uniform heating to the starting forging temperature is required to avoid thermal stress cracks.
Cooling in the air
7: Heat treatment
1）: Solution annealing
Heat 201 steel to 1010-1120℃
Quick cool in the air/water
The aim is to optimize corrosion resistance and plasticity by eliminating work-hardening, dissolving carbides and restoring single-phase austenitic organization.
2): Aging
Heat to 850-930℃ in the furnace
8：Application
201 stainless steel is an austenitic stainless steel, widely used in occasions that do not require high corrosion resistance. Its main application areas:
1. Household goods & kitchen utensils
1) Cutlery: knives, forks, spoons, dinner plates, etc.
2) Kitchen utensils: pots, pans, bowls, sinks, draining baskets, etc.
3) Household utensils: insulated cups, jugs, trays, etc.
2. Architectural decorations & interiors
1) Door and window frames, handrails, guardrails
2) Elevator decorative panels, curtain walls
3) Interior skirting, ceilings and suspended ceilings
3. Industry & Manufacturing
1) Automobile exhaust
2) Home appliances Shell: washing machine, refrigerator, microwave oven, etc.
3) Hardware accessories: screws, nuts, springs, etc.
4. Other daily use
1) Billboards, signage
2) Supermarket carts, shelves
3) Lighting brackets, decorative tubing
