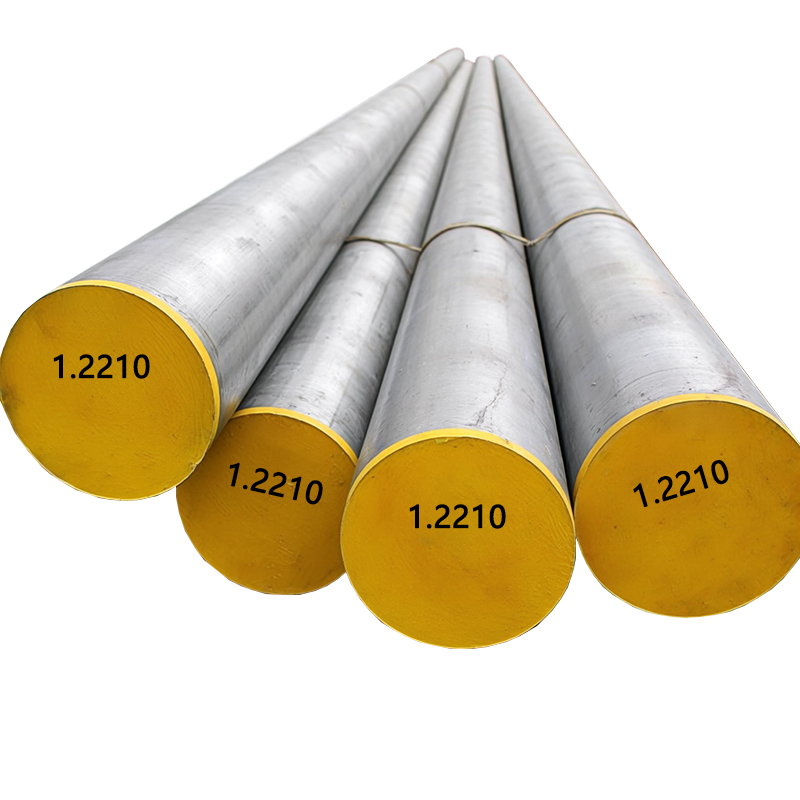

1.2210 is a widely recognized cold work tool steel that belongs to the German standard DIN 17350. It is known for its high wear resistance, good toughness, and excellent dimensional stability during heat treatment. Due to its reliable performance and broad applications, many countries have equivalent steel grades to DIN 1.2210, such as L2 from the American standard ASTM A681, 115CrV3 from International standard ISO 4957, and SKS43 from the Japanese standard JIS G4404.
1.2210 steel contains chromium, nickel, and molybdenum, which contribute to its hardness and toughness. The nickel content enhances its impact resistance, while the molybdenum improves hardenability and wear resistance.
1: Steel equivalent
Country | USA | ISO | Germany | Japan |
Standard | ASTM A681 | ISO 4957 | DIN17350 | JIS G4404 |
Grade | L2 | 115CrV3 | 1.2210 | SKS43 |
2: Chemical composition
Grade | C | Si | Mn | P | S | Cr | Mo | V |
L2 | 0.45-1.00 | 0.10-0.50 | 0.10-0.90 | 0.030Max | 0.030Max | 0.7-1.2 | 0.25Max | 0.10-0.30 |
115CrV3/1.2210 | 1.10-1.25 | 0.15-0.30 | 0.20-0.40 | 0.030Max | 0.030Max | 0.5-0.8 | / | 0.07-0.12 |
SKS43 | 1.00-1.10 | 0.10-0.30 | 0.10-0.40 | 0.030Max | 0.030Max | 0.20Max | / | 0.10-0.20 |
3: Surface hardness and hardenability.
Heat Treatment | Hardness |
Annealed (+A) | HB223Max |
Cold-drawn condition | HB241Max |
Hardening and Tempering (+HT) | HRC60 Min |
4: Supply size & Tolerance & Stock size
Product type | Size range | Length |
Hot rolled bar | Φ10-Φ190mm | 2000-5800mm |
Hot forged bar | Φ200-Φ600mm | 2000-5800mm |
Hot rolled plate/sheet | T:10-60mm; W:310-810mm | 2000-5800mm |
Hot forged plate | T:70-250mm; W:310-810mm | 2000-5800mm |
Hot Forged block | T: 260-500mm; W: 300-1000mm | 2000-5800mm |
Surface Finish | Turned | Milled | Grinding(Best) | Polished(Best) | Peeled(Best) | Black Forged | Black Rolled |
Tolerance | +0/+3mm | +0/+3mm | +0/+0.05mm | +0/+0.05mm | +0/+0.1mm | +0/+5mm | +0/+1mm |
Straighness | 1mm/1000mm max. | 3mm/1000mm max. | |||||
For 1.2210 steel, because we don’t use them in domestic market, so there is no stocks for that material.
5: Ultrasonic Test
EN10228-3 class III or Sep 1921-84 D/D
6：Steel making & Forging processing
1): Steel making process:
EF+LF+VD
EAF+LF+VD
EF+LF+VD+ESR
EAF+LF+VD+ESR
2): Forging processing:
Pre-heat 1.2210 steel in 500-550°C to avoid cracking and reduce thermal stresses.
Initial temperature: 1050-1100℃
Final temperature: 850-900℃
Cooling in the sand
7: Heat treatment
1): Annealed:
Heat 1.2210 steel to 760-780℃
Furnace cooling (≤20°C/hour) to approx. 600°C, then air cooling.
2): Quenching and tempering:
Preheat Temperature: 649℃
Heat 1.2210 steel to 870-890℃ in the salt bath furnace
Quench in oil
Temper steel at 204℃ in the furnace
Cooling in the air.

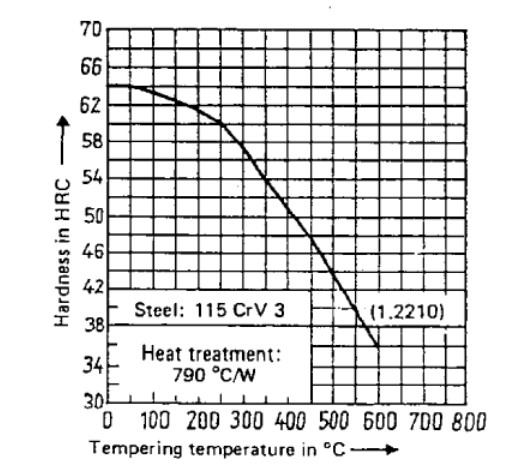

Above curve in figure is a rough guide to the tempering behaviour of steels.
8：Application
1.2210 is a high toughness, high wear-resistant cold work tool steel, its main application areas are as follows:
1. Cold Work Molds
1) Stamping Molds: for high-precision punching, punching, trimming molds, especially suitable for stainless steel, high-strength steel plate stamping.
(2) Stretching Molds: used for deep drawing molding, such as automobile cover parts, home appliance shell.
3) Cold Heading Molds: for manufacturing bolts, nuts, rivets and other fasteners that can withstand high impact loads.
(4) Extrusion Die: for aluminum, copper and other non-ferrous metals cold extrusion molding.
2. Shearing and punching tools
1) Scissor Blades: used for shearing metal sheets and wires, such as industrial shear blades.
(2) Punch and Concave Mold: for precision blanking, such as electronic connectors, hardware stamping.
3. Plastic Molding Mold
1) Injection Mold Core: for high wear-resistant requirements of plastic injection molds, especially containing glass fiber or mineral filled engineering plastics.
(2) Die-casting Mold Inserts: used for zinc, aluminum and other low melting point alloys die-casting mold, with better thermal fatigue resistance.
4. Other Tools and Mechanical Parts
1) Gauges and Fixtures: such as high-precision measuring blocks and fixture positioning pins.
2) Bearings and Guide Rails: wear-resistant components suitable for high loads and low rotational speeds.
3) Cutting Tools and Rock Drilling Tools: such as chisels, cold chisels and other hand tools that require high toughness.
