1.2080 is a high-carbon, high-chromium tool steel that conforms to the German standard DIN 17350. It is renowned for its exceptional wear resistance, high hardness, and good dimensional stability, making it suitable for applications requiring durability and precision under high-stress conditions. Due to its outstanding performance, many countries have developed equivalent steels to DIN 1.2080. Such as the American standard D3 (ASTM A681), the international standard X210Cr12 (ISO 4957), the Japanese standard SKD1 (JIS G4404), and the Chinese standard Cr12 (GB/T 1299).
1.2080 steel contains high levels of carbon (1.90-2.20%) and chromium (11.00-12.00%), which contribute to its excellent wear resistance and ability to retain hardness even under demanding conditions. The chromium content enhances its corrosion resistance and hardness, while the high carbon content ensures superior wear resistance and edge retention. These properties make 1.2080 an ideal choice for manufacturing cold work tools, such as blanking dies, forming dies, shear blades, and other components that require high wear resistance, long service life, and precise dimensional stability.
1: Steel equivalent
Country | USA | ISO | Germany | China | Japan |
Standard | ASTM A681 | ISO 4957 | DIN17350 | GB/T1299 | JIS G4404 |
Grade | D3 | X210Cr12 | 1.2080 | Cr12 | SKD1 |
2: Chemical composition
Grade | C | Si | Mn | P | S | Cr | V |
D3 | 2.00-2.35 | 0.10-0.60 | 0.10-0.60 | 0.030Max | 0.030Max | 11-13.5 | 1.00Max |
X210Cr12 | ±0.05 | ±0.03 | ±0.04 | +0.005 | +0.005 | ±0.15 | / |
1.2080 | 1.90-2.20 | 0.10-0.40 | 0.15-0.45 | 0.030Max | 0.030Max | 11-12 | / |
Cr12 | 2.00-2.30 | 0.40Max | 0.40Max | 0.030Max | 0.030Max | 11.5-13 | / |
SKD1 | 1.90-2.20 | 0.10-0.60 | 0.20-0.60 | 0.030Max | 0.030Max | 11-13 | / |
3: Surface hardness and hardenability
Heat Treatment | Hardness |
Annealed (+A) | HB248Max |
Cold-drawn condition | HB269Max |
Hardening and Tempering (+HT) | HRC62 Min |
4: Supply size & Tolerance & Stock size
Product type | Size range | Length |
Hot rolled bar | Φ10-Φ190mm | 2000-5800mm |
Hot forged bar | Φ200-Φ600mm | 2000-5800mm |
Hot rolled plate/sheet | T:10-60mm; W:310-810mm | 2000-5800mm |
Hot forged plate | T:70-250mm; W:310-810mm | 2000-5800mm |
Hot Forged block | T: 260-500mm; W: 300-1000mm | 2000-5800mm |
Surface Finish | Turned | Milled | Grinding(Best) | Polished(Best) | Peeled(Best) | Black Forged | Black Rolled |
Tolerance | +0/+3mm | +0/+3mm | +0/+0.05mm | +0/+0.05mm | +0/+0.1mm | +0/+5mm | +0/+1mm |
Straighness | 1mm/1000mm max. | 3mm/1000mm max. | |||||
For 1.2080 steel, because we don’t use them in domestic market, so there is no stocks for that material, usually we use Cr8 steel instead of 1.2080 steel in China, Cr8 steel is with similar mechanical properties but lower cost.
5: Ultrasonic Test
EN10228-3 class III or Sep 1921-84 D/D
6：Steel making & Forging processing
1): Steel making process:
EF+LF+VD
EAF+LF+VD
EF+LF+VD+ESR
EAF+LF+VD+ESR
2): Forging processing:
Put the 1.2080 ingot into the furnace and pre-heat to 700-800℃
Continue heating the ingot to initial temperature: 1050-1100℃
Forge the ingot, forging temperature should be not less than 850-900℃
Cooling in the sand or lime after forging
7: Heat treatment
1): Annealed:
Heat 1.2080 steel to 820-850℃ in the furnace
Soak at this temperature in the furnace
Cooling in the furnace slowly
2): Quenching and tempering:
Preheat Temperature: 816℃
Heat 1.2080 steel to 960-980℃ in the salt bath furnace
Soak at this temperature in the furnace
Quench in oil
Temper steel at 170-190℃ in the furnace
Take out from furnace and cool in the air.

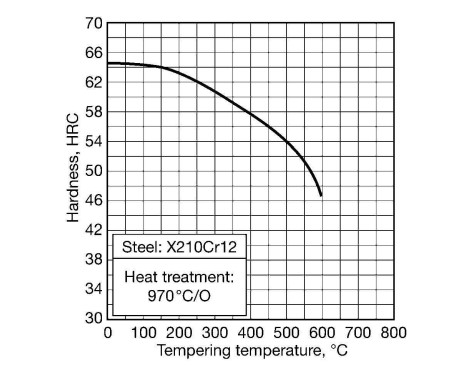

Above curve in figure is just a rough guide to the tempering behaviour of steels. When applying the curves for an estimation of the hardness which can be expected in quenched and tempered tools, it should be taken into account that the optimum heat-treatment conditions for the tools are not necessarily identical with those specified for the test pieces.
The heating time of test pieces in a salt batch shall be as give in below table:
Total heating time of test pieces in a salt bath
Nature of steel | Hardening Time min | Tempering Time min |
Cold or hot work steels | 25 +/- 1 | 60 |
High-speed steels | 3 | Minimum 2 periods of 60 each |
If the test pieces are not heated in a salt batch, the heating time must be extended accordingly, and the times for heating give above are not valid for thicker tools.
8：Application
1.2080 tool steel (a high-carbon, high-chromium cold-work tool steel, similar to D3 steel) is widely used in the manufacturing of high-demand cold-work molds and tools due to its high hardness, wear resistance, and excellent compressive strength. Below are its main applications:
Cold-Work Molds
1): Stamping Dies: Used for stamping and forming metal sheets.
2): Shearing Dies: Used for cutting and shearing metal sheets.
3): Drawing Dies: Used for deep drawing of metal sheets.
4): Cold Heading Dies: Used in cold heading forming processes.
Cutting Tools
1): Cutters: Used for machining high-hardness materials.
2): Measuring Tools: Used for high-precision measuring instruments.
3): High-Precision Components: Used in the manufacturing of high-precision mechanical parts.
Wear-Resistant Components
1): Guide Pins: Used as guiding components in molds.
2): Guide Bushings: Used as guiding components in molds.
3): Wear-Resistant Liners: Used as protective liners in high-wear environments.
Other Applications
1): High-Hardness Mechanical Parts: Such as bearings, gears, etc.
2): Precision Molds: Used for manufacturing high-precision molds.
