1.2713 is a widely used hot work tool steel that belongs to the German standard DIN 17350. It is known for its high toughness, good wear resistance, and excellent resistance to thermal fatigue, making it suitable for heavy-duty applications such as forging dies, extrusion tools, and die-casting molds. Many countries have equivalent steel grades to DIN 1.2713, such as: L6 from American standard ASTM A681, 55NiCrMoV6 from International standard ISO 4957, SKT4 from Japanese standard JIS G4404, 5CrNiMo from Chinese standard GB/T 1299.
1: Steel equivalent
Country | USA | ISO | Germany | China | Japan |
Standard | ASTM A681 | ISO 4957 | DIN17350 | GB/T1299 | JIS G4404 |
Grade | L6 | 55NiCrMoV6 | 1.2713 | 5CrNiMo | SKT4 |
2: Chemical composition
Grade | C | Si | Mn | P | S | Cr | Mo | Ni | V |
L6 | 0.65-0.75 | 0.10-0.50 | 0.25-0.80 | 0.030Max | 0.030Max | 0.6-1.2 | 0.50Max | 1.25-2.00 | / |
55NiCrMoV6/1.2713 | 0.50-0.60 | 0.10-0.40 | 0.65-0.95 | 0.030Max | 0.030Max | 0.6-0.8 | 0.25-0.35 | 1.50-1.80 | 0.07-0.12 |
5CrNiMo | 0.50-0.60 | 0.40Max | 0.50-0.80 | 0.030Max | 0.030Max | 0.5-0.8 | 0.15-0.30 | 1.40-1.80 | / |
SKT4 | 0.50-0.60 | 0.10-0.40 | 0.60-0.90 | 0.030Max | 0.020Max | 0.8-1.2 | 0.35-0.55 | 1.50-1.80 | 0.05-0.15 |
3: Surface hardness and hardenability.
Heat Treatment | Hardness |
Annealed (+A) | HB248Max |
Cold-drawn condition | HB262Max |
Hardening and Tempering (+HT) | HRC46 Min |
4: Supply size & Tolerance & Stock size
Product type | Size range | Length |
Hot rolled bar | Φ10-Φ190mm | 2000-5800mm |
Hot forged bar | Φ200-Φ600mm | 2000-5800mm |
Hot rolled plate/sheet | T:10-60mm; W:310-810mm | 2000-5800mm |
Hot forged plate | T:70-250mm; W:310-810mm | 2000-5800mm |
Hot Forged block | T: 260-500mm; W: 300-1000mm | 2000-5800mm |
Surface Finish | Turned | Milled | Grinding(Best) | Polished(Best) | Peeled(Best) | Black Forged | Black Rolled |
Tolerance | +0/+3mm | +0/+3mm | +0/+0.05mm | +0/+0.05mm | +0/+0.1mm | +0/+5mm | +0/+1mm |
Straighness | 1mm/1000mm max. | 3mm/1000mm max. | |||||
For 1.2713 steel, because we don’t use them in domestic market, so there is no stocks for that material.
5: Ultrasonic Test
EN10228-3 class III or Sep 1921-84 D/D
6：Steel making & Forging processing
1): Steel making process:
EF+LF+VD
EAF+LF+VD
EF+LF+VD+ESR
EAF+LF+VD+ESR
2): Forging processing:
Pre-heat 1.2713 steel to 600-700℃. And avoid localized overheating, segmented preheating is recommended.
Initial temperature: 1050-1100℃
Final temperature: ≥850℃
Cooling in the sand or furnace
7: Heat treatment
1): Annealed:
Heat 1.2713 steel to 780-800℃
Cooling in the furnace slowly
2): Quenching and tempering:
Preheat Temperature: 649℃
Heat 1.2713 steel to 830-850℃ in the salt bath furnace
Quench in oil
Temper steel at 490-510℃ in the furnace
Cooling in the air.

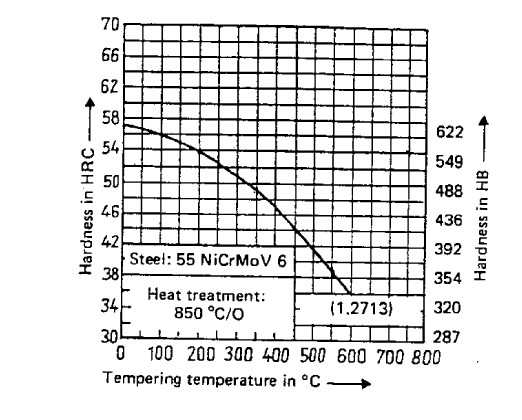

Above curve in figure is a rough guide to the tempering behaviour of steels.
8：Application
1.2713 is a high toughness, impact resistant hot work die steel, which is widely used in the following fields:
1. Hot Work Dies
1) Forging Dies: Heavy-duty forging dies (e.g., hammer forging dies, press forging dies); molding of gears, crankshafts, connecting rods, and other large forgings.
(2) extrusion die: aluminum, copper alloy hot extrusion die (such as profiles, pipe extrusion).
(3) die-casting mold: zinc, aluminum, magnesium alloy die-casting mold.
2. Cold work molds
1) Punching die: thick plate punching, drop die.
(2) shear blade: heavy duty shear blade (such as billet shear).
(3) Cold heading die: bolt, nut molding die.
3. Plastic mold
1) injection mold: for high wear-resistant, highly polished requirements of the mold (such as engineering plastic parts).
(2) Blow mold: bottle embryo, container molding mold.
