When selecting a wear resistant steel plate for mining equipment, construction machinery, dump trucks, crushers, loaders, or material handling systems, choosing the right hardness grade is critical. NM400, NM450, and NM500 wear resistant steel are widely considered when high resistance to abrasion is required, but they are not designed for exactly the same working conditions.
The numbers in NM400, NM450, and NM500 are commonly associated with their approximate Brinell hardness levels. As the grade increases, the steel generally provides greater resistance to abrasive wear. However, higher hardness can also affect fabrication, bending, cutting, and welding requirements.
So, which is better: NM400, NM450, or NM500?
The answer depends on the type of wear, impact conditions, required service life, plate thickness, fabrication method, and overall project cost.
This guide explains the differences between NM400 vs NM450 vs NM500 wear resistant steel, including hardness, performance, applications, fabrication, and how to select the right grade for your project.
NM400, NM450, and NM500 are commonly used designations for high-hardness wear resistant steel plates. The "NM" designation is generally associated with wear-resistant steel, while the numerical value indicates the approximate hardness level.
In practical applications:
NM400 is a balanced wear-resistant grade with relatively good toughness and fabricability.
NM450 provides a higher level of abrasion resistance for more demanding working conditions.
NM500 is intended for severe abrasive environments where maximizing wear resistance is a priority.
| Property | NM400 | NM450 | NM500 |
| Hardness (HBW) | 370–430 | 420–480 | 470–530 |
| Yield Strength (MPa) | ≥950 | ≥1050 | ≥1100 |
| Tensile Strength (MPa) | ≥1200 | ≥1250 | ≥1350 |
| Elongation | ≥10% | ≥7% | ≥6% |
| -20℃ Charpy Impact | ≥24 J | ≥24 J | ≥21 J |
| Key Advantage | Balanced toughness & wear resistance, easy fabrication | Higher wear resistance than NM400, moderate impact tolerance | Maximum sliding abrasion resistance |
| Fabrication | Best weldability & cold bending | Medium processing difficulty | Hardest to bend and weld; strict preheating required |
| Typical Cost | Lowest of three | Mid-range | Highest |

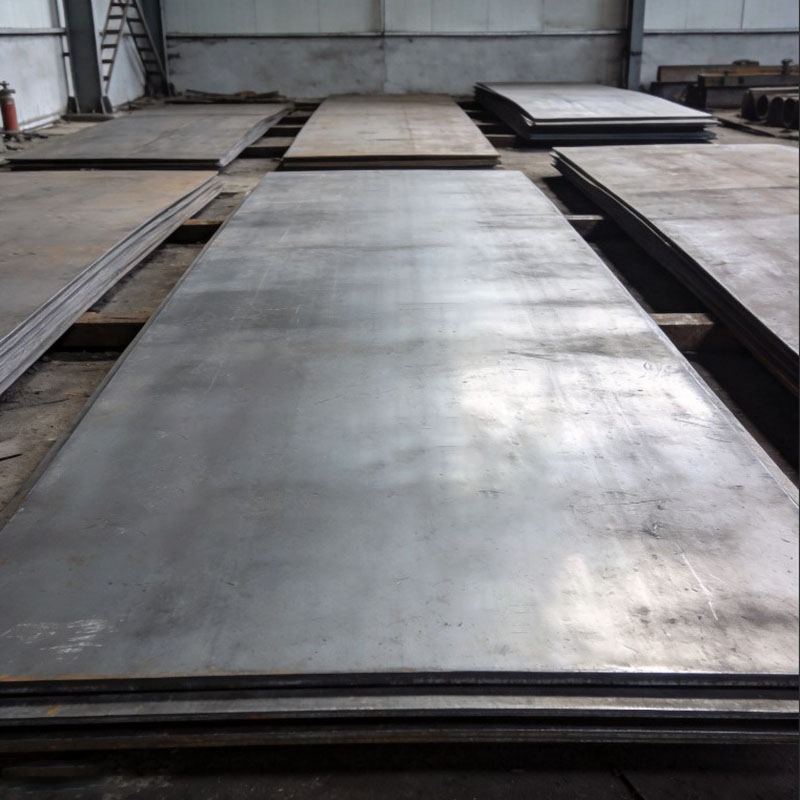

NM400 is the most popular general-purpose wear plate. It offers a great compromise between abrasion performance and impact toughness. Its lower carbon equivalent brings easier plasma cutting, cold forming and welding compared with NM450 and NM500. Preheating is still recommended for thick sections, but the welding procedure is less restrictive.
Best for:
Dump truck body liners
Medium-duty hoppers and chutes
Loader bucket liners
Conveyor skirt boards
Parts requiring bending or rolling
Limitations: Not ideal for continuous heavy sliding abrasion from hard sharp ore, where NM450 or NM500 will deliver much longer service life.
NM450 sits between NM400 and NM500. Its hardness is 15–30% higher than NM400, extending service life in sliding wear scenarios, while it still retains acceptable toughness for occasional moderate impact. It is the preferred upgrade when NM400 wears too fast but NM500 is too brittle or expensive.
Best for:
Mining chute liners handling granite, gravel and medium-hard ore
Excavator bucket wear plates
Aggregate processing equipment
Medium-heavy bulk material transfer points
Limitations: Cold bending radius must be larger than NM400. Weld cracking risk rises, so welding procedure specification control is necessary. Severe repeated impact can cause chipping.
NM500 is the hardest among these three grades. It provides superior resistance against continuous sliding friction from hard minerals. In pure abrasion environments, NM500 service life can reach 1.8–2.5 times NM400.
The tradeoff is lower toughness and poorer workability. Cold bending requires a very large bend radius. Welding needs careful preheating and low-hydrogen consumables to avoid cold cracking. Any heavy, repeated impact may lead to surface spalling or plate fracture.
Best for:
Crusher liners and impact plates
Heavy-duty screw conveyor liners
Fixed chutes with hard iron ore, quartz
Low-impact, high-abrasion stationary wear components
Limitations: Not recommended for applications with heavy dynamic impact. Fabrication cost and lead time are higher.
In general, the wear resistance ranking follows:
NM500 > NM450 > NM400
The reason is straightforward: higher hardness generally provides better resistance to abrasive material removal.
However, choosing a steel plate based only on hardness is not always correct.
A component may experience:
Abrasion
Impact
Bending
Shock loading
Welding stresses
Low-temperature service
Repeated deformation
If the material is exposed to severe impact, a very hard steel may not necessarily provide the best overall performance for the application.
Therefore, the correct question is not simply:
"Which grade is the hardest?"
Instead, ask:
"Which grade provides the best balance between wear resistance, toughness, fabrication, service life, and total cost?"
Hardness is one of the most important factors when comparing wear resistant steel.
A simplified comparison is:
NM400 → approximately 400 HB
NM450 → approximately 450 HB
NM500 → approximately 500 HB
The exact value should not be treated as a universal chemical or mechanical specification because different manufacturers and standards can specify different ranges.
Higher hardness normally means better resistance against abrasive wear, but it can also make the material more difficult to process.
Fabrication is an important consideration that is sometimes overlooked during material selection.
NM400 is generally easier to cut than NM450 and NM500.
As hardness increases, thermal cutting parameters and heat-affected zones become increasingly important. CNC plasma cutting, laser cutting, or flame cutting should follow the supplier's recommended procedures.
High-hardness wear resistant plate can be more challenging to drill than conventional structural steel.
For NM450 and especially NM500, suitable carbide tools, controlled cutting parameters, and appropriate cooling may be required.
NM400 generally provides better forming performance than NM450 and NM500.
The minimum bending radius depends on:
Plate thickness
Rolling direction
Steel grade
Heat treatment condition
Bending equipment
NM400, NM450, and NM500 can be welded when appropriate welding procedures are used, but the required precautions become increasingly important as hardness and plate thickness increase.
Preheating, interpass temperature, hydrogen control, heat input, and consumable selection should be evaluated before welding.
Mining is one of the most demanding environments for wear resistant steel.
Mining equipment can be exposed to:
Iron ore
Coal
Rock
Gravel
Sand
Mineral concentrates
Repeated impact
Sliding abrasion
NM400 is suitable for applications where both abrasion and impact are present and fabrication efficiency is important.
NM450 is a good middle-ground option for heavier abrasive conditions where NM400 wears too quickly.
NM500 is more suitable for severe abrasive conditions where maximizing wear life is the primary objective.
For example, crusher liners and high-wear material chutes may benefit from higher-hardness grades, while structural components exposed to substantial impact may require a more balanced grade.
No. NM500 has a higher hardness level, but that does not automatically make it the best choice for every application.
For example, if a component experiences significant impact and deformation, a lower-hardness grade with better toughness may provide better overall service performance.
There is also a fabrication consideration.
If a component requires extensive:
Cutting
Drilling
Bending
Welding
Machining
NM400 may be more practical and economical.
In contrast, if abrasive wear is overwhelmingly the main failure mechanism, NM500 may offer a longer service life.
Therefore, higher hardness does not always equal lower total cost.
A simple rule of thumb is:
You need good overall wear resistance.
Impact loading is significant.
Fabrication is important.
You need a cost-effective wear plate.
The working environment is moderately to heavily abrasive.
Wear conditions are heavier.
NM400 does not provide sufficient service life.
You want a balance between hardness and fabricability.
The equipment operates continuously under abrasive conditions.
Abrasion is extremely severe.
Maximum wear resistance is a major priority.
Component replacement is expensive.
The application can accommodate stricter fabrication requirements.
Long service life is more important than easy processing.
The cheapest steel plate is not necessarily the cheapest solution.
For example, assume a machine component made from NM400 needs to be replaced frequently, while an NM500 component lasts considerably longer.
Even if NM500 has a higher purchase price, the overall operating cost may be lower because of reduced:
Maintenance
Labor
Replacement parts
Equipment downtime
Production interruptions
For this reason, buyers should evaluate cost per operating hour or cost per ton of material handled, rather than simply comparing the price per ton of steel.
A1: NM500 generally has a higher hardness level and better resistance to abrasive wear than NM400. However, "stronger" should be evaluated using specific mechanical properties such as yield strength and tensile strength rather than hardness alone.
A2: For more severe abrasive conditions, NM450 can provide better wear resistance. However, NM400 may still be preferable when impact resistance, fabrication, or cost is more important.
A3: NM500 can be welded, but welding procedures require greater attention than for lower-hardness steel. Preheating, hydrogen control, interpass temperature, consumable selection, and heat input should be determined according to the specific material and welding procedure.
A4: Yes, NM500 can be formed under suitable conditions, but its higher hardness generally requires larger bending radii and more controlled forming procedures than NM400. Always follow the manufacturer's technical recommendations.
A5: It depends on the application. NM400 can be suitable for components exposed to both impact and abrasion, while NM500 is more attractive for severe abrasive wear where longer wear life is the priority.
A6: NM400 and NM450 are commonly considered for dump truck applications because they offer a balance between wear resistance, toughness, weight reduction, and fabrication. NM500 may be appropriate for particularly abrasive loads when the fabrication requirements can be accommodated.
A7: No. Actual service life depends on the abrasive material, particle size, impact conditions, plate thickness, equipment design, operating temperature, and fabrication quality. Hardness is important, but it is only one part of the material selection process.
NM400 is your default option for balanced performance and easy processing. NM450 works as a cost-effective upgrade when NM400 wears out quickly. NM500 delivers maximum abrasion resistance only for low-impact severe sliding wear environments.
