105V
Qilu
1: Steel equivalent
Country | ISO | Germany | Japan |
Standard | ISO 4957 | DIN 17350 | JIS G4404 |
Grade | 105V | 1.2834 | SKS43 |
2: Chemical composition
Grade | C | Si | Mn | Cr | P | S | V |
| 105V/1.2834 | 1.00-1.10 | 0.10-0.30 | 0.10-0.40 | / | 0.030Max | 0.030Max | 0.10-0.20 |
| SKS43 | 1.00-1.10 | 0.10-0.30 | 0.10-0.40 | 0.20Max | 0.030Max | 0.030Max | 0.10-0.20 |
3: Surface hardness and hardenability
Heat Treatment | Hardness |
Annealed (+A) | HB212Max |
| Hardening and Tempering (+HT) | HRC61 Min |
| Quenched and tempred (+QT) | HRC28-32(Common Range) |
4: Supply size & Tolerance & Stock size
Product type | Size range | Length |
Hot rolled bar | Φ10-Φ190mm | 2000-5800mm |
Hot forged bar | Φ200-Φ600mm | 2000-5800mm |
Hot rolled plate/sheet | T:10-60mm; W:310-810mm | 2000-5800mm |
Hot forged plate | T:70-250mm; W:310-810mm | 2000-5800mm |
Hot Forged block | T: 260-500mm; W: 300-1000mm | 2000-5800mm |
Surface Finish | Turned | Milled | Grinding(Best) | Polished(Best) | Peeled(Best) | Black Forged | Black Rolled |
Tolerance | +0/+3mm | +0/+3mm | +0/+0.05mm | +0/+0.05mm | +0/+0.1mm | +0/+5mm | +0/+1mm |
Straighness | 1mm/1000mm max. | 3mm/1000mm max. | |||||
To ensure optimal performance for your application, we produce 1.2834 tool steel on a dedicated make-to-order basis. This approach guarantees fresh production and allows us to customize the process for your specific requirements. Tell us your needs, and let's get started.
5: Ultrasonic Test
EN10228-3 class III or Sep 1921-84 D/D
6：Steel making & Forging processing
1): Steel making process:
EF+LF+VD
EAF+LF+VD
EF+LF+VD+ESR
EAF+LF+VD+ESR
2): Forging processing:
Initial temperature: 1050-1100℃
Final temperature: 800-850℃
Cooling in the furnace or in the sand
7: Heat treatment
1): Annealed:
Heat 1.2834 steel to 770-800℃
Slowly Cooling in the furnace
2): Quenching and tempering:
Heat 1.2834 steel to 780-800℃ in the salt bath furnace
Quench in the water
Temper steel at 170-190℃ in the furnace
Cooling in the air.

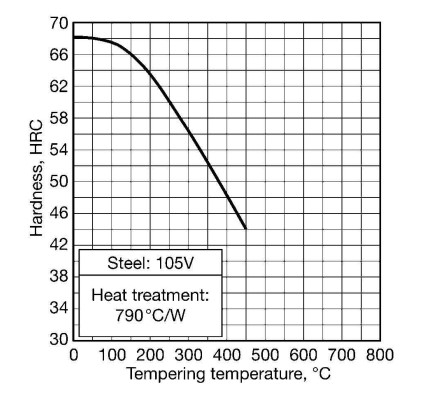

Above curve in figure is a rough guide to the tempering behaviour of steels.
8：Application
1.2834 is a versatile oil-hardening or air-hardening cold-work tool steel, whose core application lies in its excellent balance of wear resistance and toughness. Primary application areas:
1. Cold-work dies
Punching dies: Punches, dies, and liners for punching thin to medium-thick plates, particularly suitable for processing low-carbon steel, non-ferrous metals (e.g., copper, aluminum) and their alloys
Forming dies: Used for bending, flanging, shallow drawing, and other forming processes
Imprinting dies: Used for coin, badge, jewelry, and other applications requiring high surface quality and dimensional accuracy
Wire drawing dies: Used for drawing metal wire
Critical components in progressive and compound dies
2. Cutting Tools and Measuring Instruments
Cutting tools: Suitable for manufacturing low-speed, small-feed cutting tools like reamers, taps, and thread rolling dies
Measuring instruments: Used to produce gauges, plug gauges, templates, and other measuring tools requiring high wear resistance and dimensional stability
3. Other Fixtures and Tooling
Wear-resistant liners, guide rails, slides, and other mechanical components requiring high wear resistance
