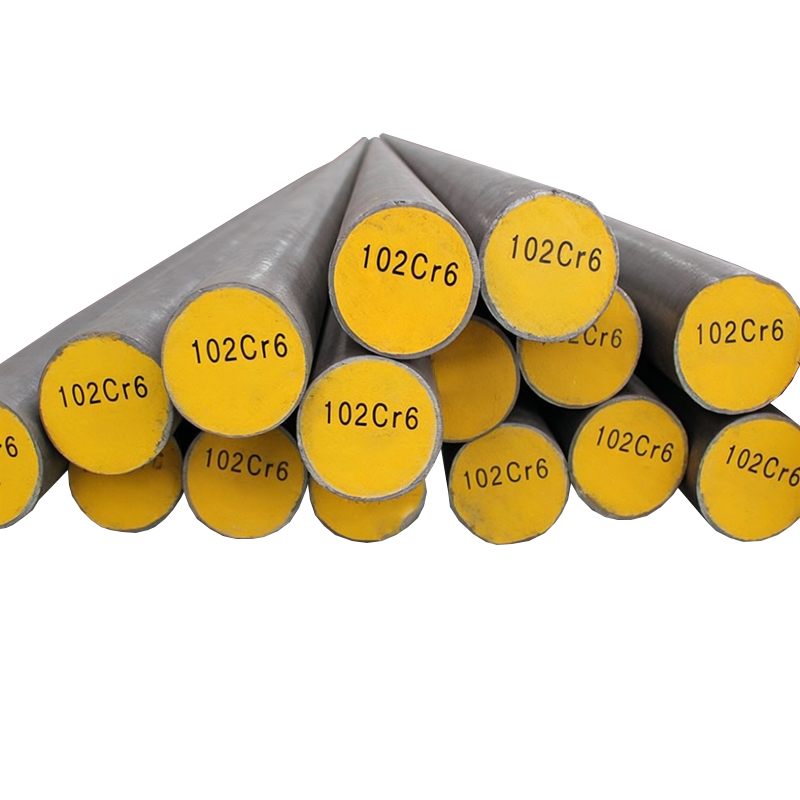

102Cr6/1.2067 is a widely used high-carbon chromium bearing steel according to the German standard DIN 17350. It is known for its high hardness, excellent wear resistance, and good dimensional stability after heat treatment. Due to its common application and reliable performance, many countries have equivalent grades to DIN 1.2067. Such as L3 from the American ASTM A681 standard, SUJ2 from the Japanese standard JIS G4805, and GCr15 from the Chinese standard GB/T 18254.
1.2067 steel contains a high carbon content and chromium, which serve as key elements for forming hard carbides and enhancing hardenability. The chromium content improves the steel's resistance to wear and corrosion, making it suitable for applications requiring high durability and precision.
1: Steel equivalent
Country | ISO | Germany | China | Japan | USA |
Standard | ISO 4957 | DIN 17350 | GB/T 18254 | JIS G4805 | ASTM A681 |
Grade | 102Cr6 | 102Cr6/1.2067 | GCr15 | SUJ2 | L3 |
2: Chemical composition
Grade | C | Si | Mn | Cr | Mo | P | S |
GCr15 | 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | 1.40-1.65 | 0.10Max | 0.025Max | 0.020Max |
102Cr6/1.2067 | 0.95-1.10 | 0.15-0.35 | 0.25-0.45 | 1.35-1.65 | / | 0.030Max | 0.030Max |
SUJ2 | 0.95-1.10 | 0.15-0.35 | 0.50Max | 1.30-1.60 | 0.08Max | 0.025Max | 0.025Max |
L3 | 0.95-1.10 | 0.10-0.50 | 0.25-0.80 | 1.30-1.70 | / | 0.030Max | 0.030Max |
3: Surface hardness and hardenability
Heat Treatment | Hardness |
Annealed (+A) | HB223Max |
| Cold-drawn condition | HB241Max |
| Quenched and tempred (+QT) | HRC28-32(Common Range) |
4: Supply size & Tolerance & Stock size
Product type | Size range | Length |
Hot rolled bar | Φ10-Φ190mm | 2000-5800mm |
Hot forged bar | Φ200-Φ600mm | 2000-5800mm |
Hot rolled plate/sheet | T:10-60mm; W:310-810mm | 2000-5800mm |
Hot forged plate | T:70-250mm; W:310-810mm | 2000-5800mm |
Hot Forged block | T: 260-500mm; W: 300-1000mm | 2000-5800mm |
Surface Finish | Turned | Milled | Grinding(Best) | Polished(Best) | Peeled(Best) | Black Forged | Black Rolled |
Tolerance | +0/+3mm | +0/+3mm | +0/+0.05mm | +0/+0.05mm | +0/+0.1mm | +0/+5mm | +0/+1mm |
Straighness | 1mm/1000mm max. | 3mm/1000mm max. | |||||
For 1.2067 steel, because we don’t use them in domestic market, so there is no stocks for that material.
5: Ultrasonic Test
EN10228-3 class III or Sep 1921-84 D/D
6：Steel making & Forging processing
1): Steel making process:
EF+LF+VD
EAF+LF+VD
EF+LF+VD+ESR
EAF+LF+VD+ESR
2): Forging processing:
Initial temperature: 1050-1100℃
Final temperature: 850℃
Cooling in the furnace
7: Heat treatment
1): Annealed:
Heat 1.2067 steel to 780-800℃
Cooling in the furnace slowly
2): Quenching and tempering:
Preheat Temperature: 649℃
Heat 1.2067 steel to 830-850℃ in the salt bath furnace
Quench in the water
Temper steel at 170-190℃ in the furnace
Cooling in the air.

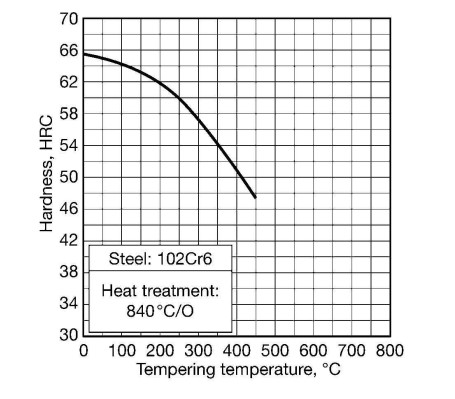

Above curve in figure is a rough guide to the tempering behaviour of steels.
8：Application
1.2067 steel finds extensive application in industrial sectors due to its outstanding wear resistance, high strength, and excellent fatigue life. Below are the primary application areas and specific uses of 1.2067 steel:
1. Bearings and Rolling Elements
Inner and outer rings, and rolling elements for ball bearings
Rollers and rings for roller bearings
Thrust bearing rings and rolling elements
2. Automotive Industry
Engine components: Fuel pump parts, valve lifters
Transmission systems: Synchronizer rings, clutch bearings
Steering systems: Steering gear components
3. Tools and Dies
Measuring tools: Block gauges, plug gauges, micrometer measuring surfaces, etc., leveraging its dimensional stability and wear resistance
Cold work dies: Punch dies, dies, embossing dies, cold heading dies for light loads
Machine Tool Components: High-wear-resistant shafts, guideways, bushings, lead screws, etc.
4. Other High-Wear-Resistant Mechanical Components
Rollers and pulleys
Pump shafts and bushings
Hydraulic components
Precision parts for textile machinery
