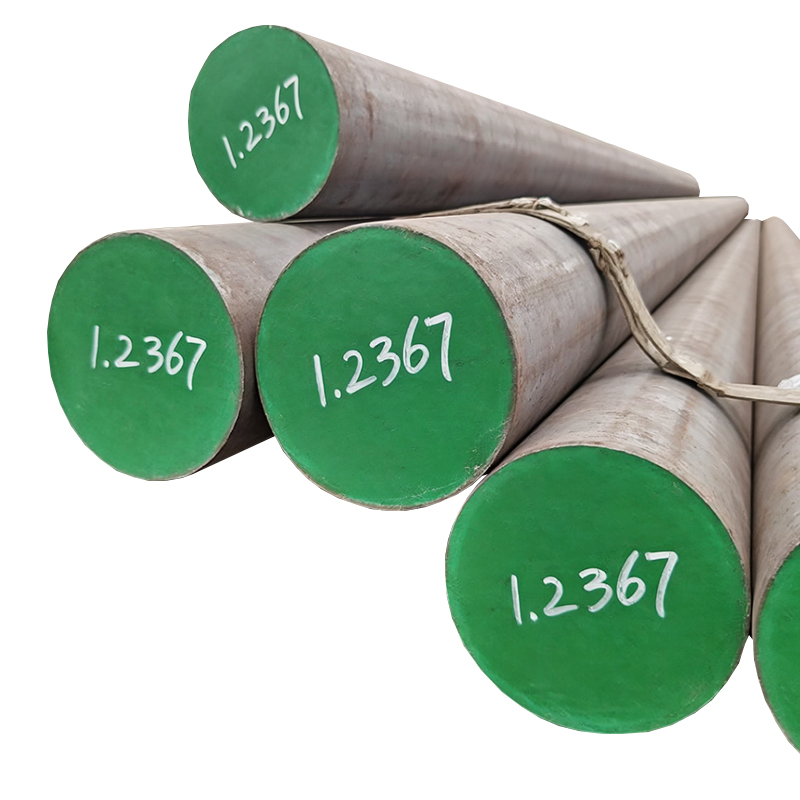

DIN X38CrMoV5-3 1.2367 Tool Steel - Hot Work Steel

X38CrMoV5-3/1.2367 is a chromium-molybdenum-vanadium alloy tool steel widely used in the tool and die industry, conforming to the German standard DIN EN ISO 4957. This material is renowned for its high wear resistance, good hardenability, excellent dimensional stability, and moderate toughness. Following appropriate heat treatment, this steel achieves uniform hardness and stable mechanical properties, making it suitable for applications such as stamping dies in high-wear environments, precision cutting tools, and plastic molding dies.

1.2367 steel contains relatively high proportions of chromium, molybdenum, and vanadium. Chromium significantly enhances the material's hardenability, hardness, and corrosion resistance; molybdenum effectively increases the steel's strength, thermal hardness, and resistance to tempering softening; while the addition of vanadium refines the grain structure, further improving wear resistance and toughness. The synergistic effect of these alloying elements makes this steel grade particularly suitable for demanding applications requiring high wear resistance, high load-bearing capacity, and long-term dimensional stability.

1: Steel equivalent

2: Chemical composition

3: Surface hardness and hardenability

4: Supply size & Tolerance & Stock size

For 1.2367 steel, because we don’t use them in domestic market, so there is no stocks for that material.

5: Ultrasonic Test

EN10228-3 class III or Sep 1921-84 D/D

6：Steel making & Forging processing

1): Steel making process:

  EF+LF+VD

  EAF+LF+VD

  EF+LF+VD+ESR

  EAF+LF+VD+ESR

2): Forging processing:

Initial temperature: 1050-1150℃

Final temperature: 850℃

Cooling in the furnace

7: Heat treatment

1): Annealed:

Heat 1.2367 steel to 780-800℃

Slowly cool to approximately 650 °C. Once 650 °C is reached, remove from the furnace and continue cooling in air to room temperature.

2): Quenching and tempering:

Heat 1.2367 steel to 1030-1050℃ in the salt bath furnace

Quench in the Oil

Temper steel at 540-560℃ in the furnace

Cooling in the air.

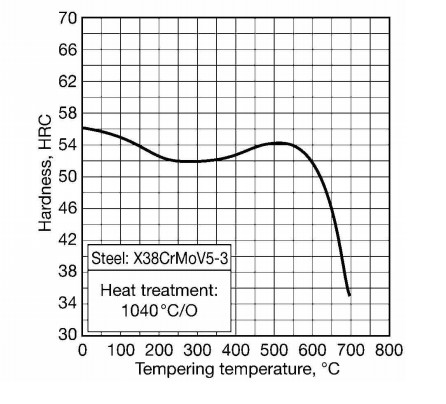

Above curve in figure is a rough guide to the tempering behaviour of steels.

8：Application

1.2367 is a high-carbon, high-chromium alloy tool steel containing molybdenum and vanadium, renowned for its outstanding wear resistance, excellent hardenability, and sufficient toughness. Its primary application areas and specific uses are as follows:

1. Cold work dies

1) Cutting Dies:

• Fine blanking dies: Punches and dies for precision blanking

• Progressive dies: Key die components for sequential operations like punching and blanking

• Trimming dies: Cutting edges specifically for trimming high-hardness sheet metal

2) Forming dies:

• Cold heading dies: Dies and punches for manufacturing standard parts like bolts and nuts

• Imprinting dies: Dies for precision surface embossing on coins, badges, jewelry, etc.

• Drawing and bending dies: Particularly suitable for high-volume production requiring high material wear resistance

2. Cutting tools and measuring instruments

• Cutting Tools: High-performance tools for machining wood, plastics, and non-ferrous metals, such as planer blades and paper cutters

• Measuring Tools and Guides: Highly wear-resistant gauges, calipers, and other precision measuring instruments

3. Plastic Molds

• Molds for processing plastics containing highly abrasive fillers (e.g., glass fiber, minerals)

• Forming molds for plastics like PVC that require specific surface wear resistance and corrosion resistance
